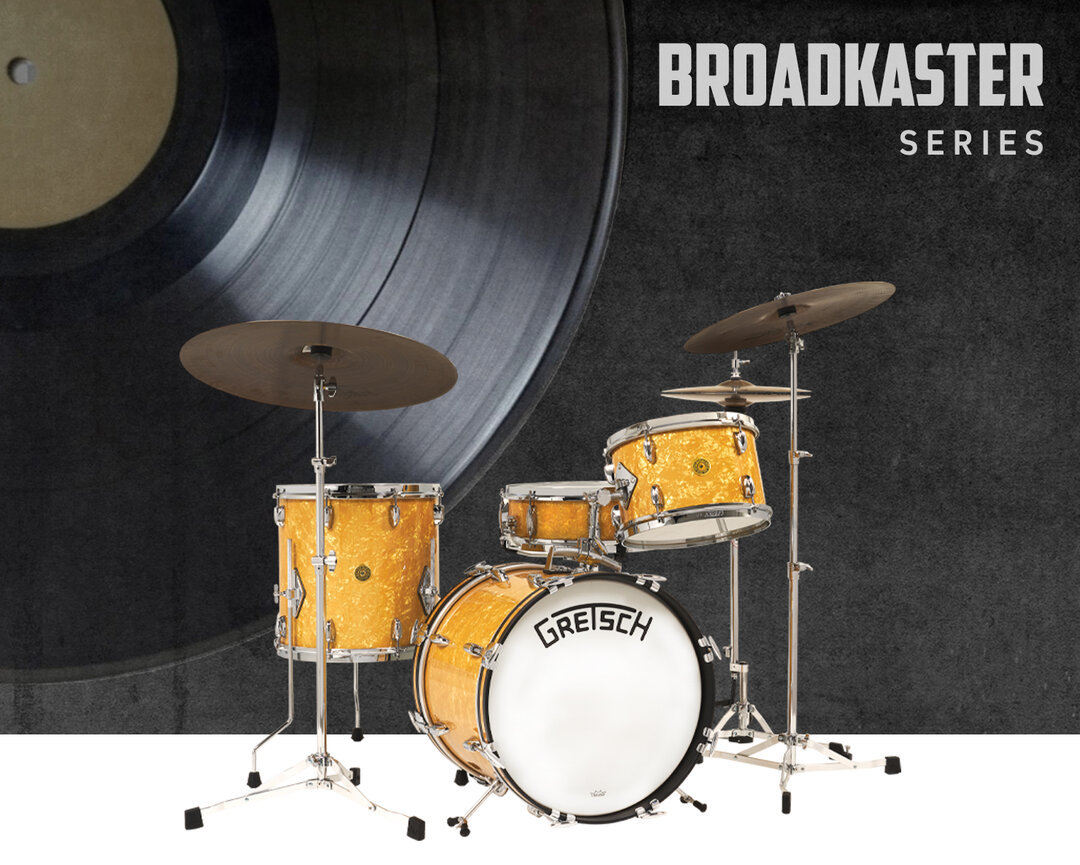

Broadkaster

From the 1920s through the 1950s, the Gretsch flagship drum set was the legendary Broadkaster Series.

It featured a thin, three-ply shell and produced what was to be, “That Great Gretsch Sound.” Today, in the Gretsch Drum Factory in Ridgeland, South Carolina, USA, the Broadkaster has returned, bringing with it all of the sonic brilliance of its namesake.

Broadkaster shells are made with our North American maple/poplar/maple formula. Each shell includes an interior-ply scarf joint that supplies added structural integrity to thin, musical shells. Like all USA-made Gretsch drums, shell interiors are finished with classic Gretsch Silver Sealer. The shell is hand finished with a roundover bearing edge, which allows greater surface contact between the bearing edge and drumhead. The result is tone that is incredibly deep, rich and warm.

Broadkaster toms and snare drums are outfitted with Gretsch’s “302” 3mm, double flanged steel hoops. These hoops are similar to “Stick Chopper” hoops used in the 1950s, but are constructed from a heavier gauge steel to stand up to today’s more assertive playing styles. The 302 hoop helps create a more open tone than a die-cast hoop and add ambient overtones to the overall tonal characteristic.

Broadkaster kits are available with two different hardware packages, standard and vintage. The Standard package includes heavy-duty Gretsch lugs, spurs, and straight-sided GTS tom suspension typical to Gretsch USA Custom and Brooklyn models. The Vintage hardware package features hardware component styles used on 1950s-era Gretsch kits, including drum mufflers, floor tom leg brackets, our re-designed Rail Consolette tom holder, Retractable spurs, bass drum T-rods, throw-off, key holder and Remo® Fiberskyn bass drum logo heads.

Like its legendary predecessors from the 1950s, today’s Broadkaster faithfully produces warm, dense and balanced tones. Thanks to the modern manufacturing advancements and finishing technology, today’s Broadkaster has even greater dynamic response and sonic presence than the originals.

Inspirational Gallery

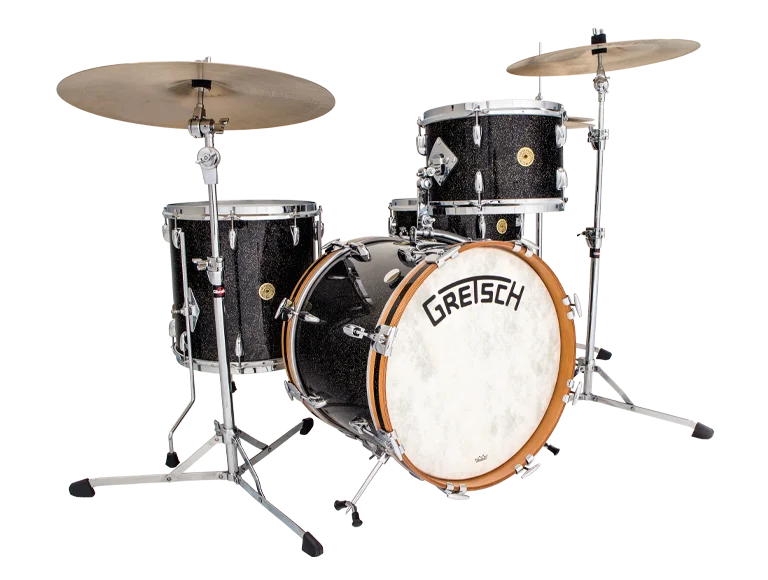

Anniversary Sparkle
Anniversary Sparkle

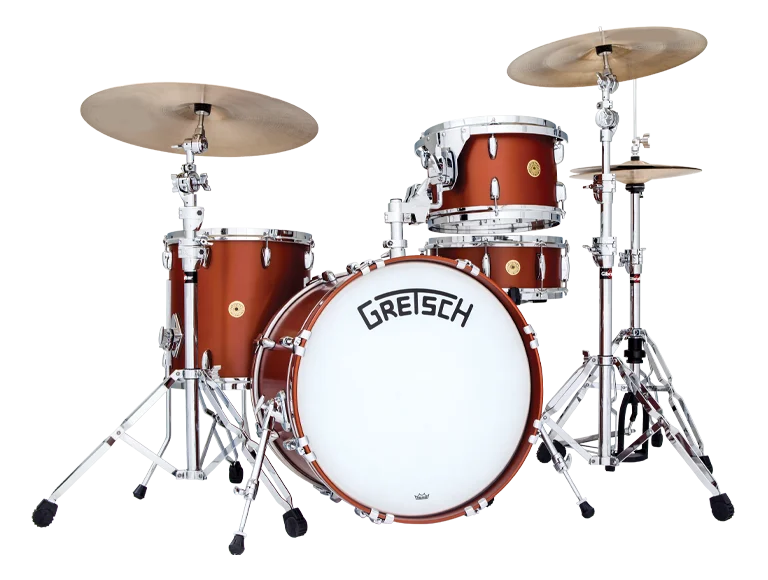

Satin Copper
Satin Copper

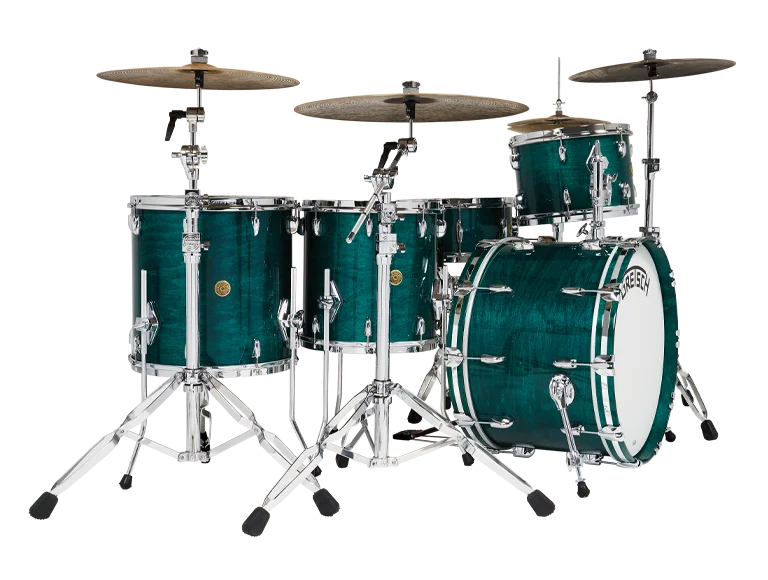

Caribbean Blue Gloss
Caribbean Blue Gloss

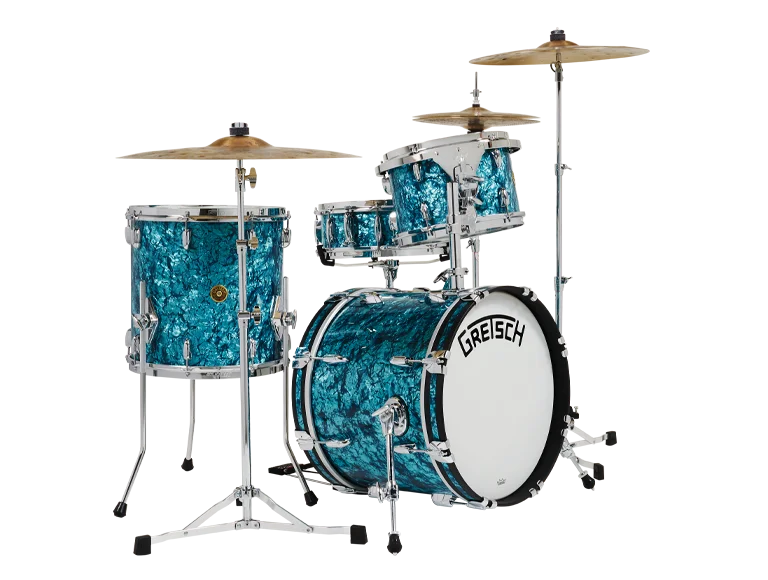

Blue Pearl
Blue Pearl

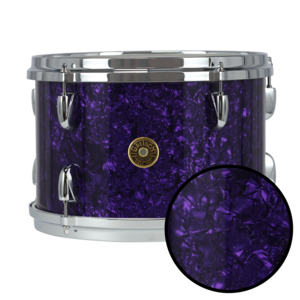

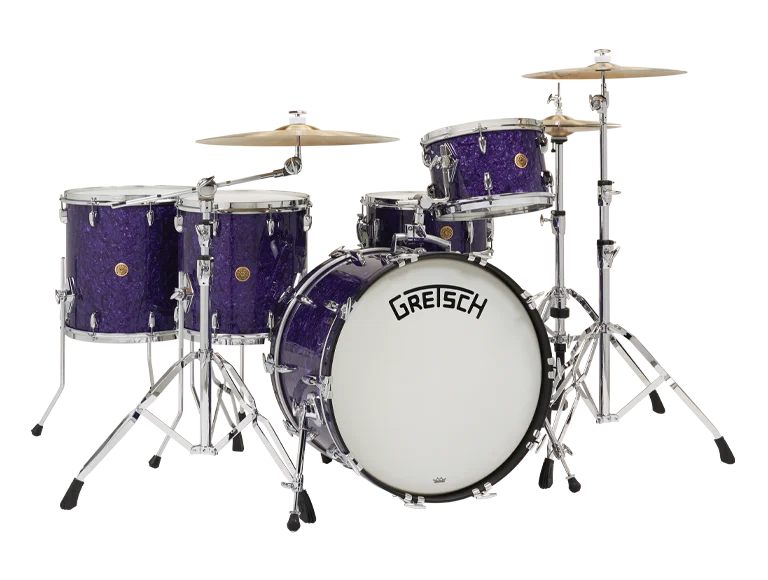

Purple Marine Pearl
Purple Marine Pearl

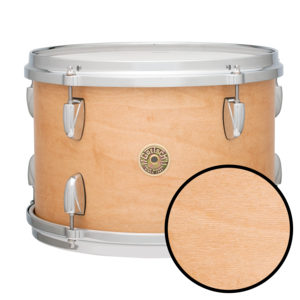

Satin Classic Maple
Satin Classic Maple

Broadkaster build options

Available Colors

nitron

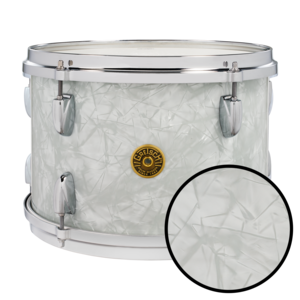

60s Marine Pearl
60s Marine Pearl

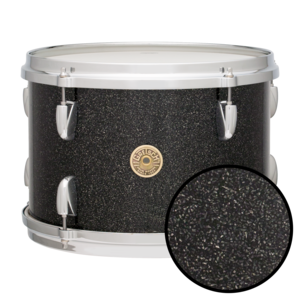

Black Glass
Black Glass

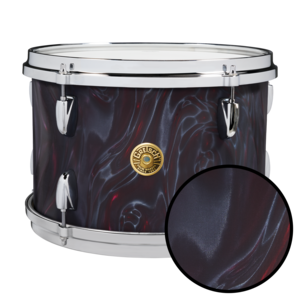

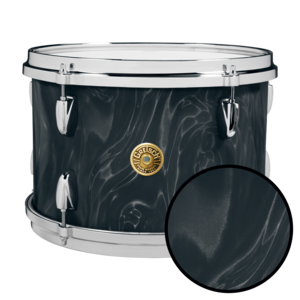

Black Satin Flame
Black Satin Flame
Blue Glass
Blue Glass

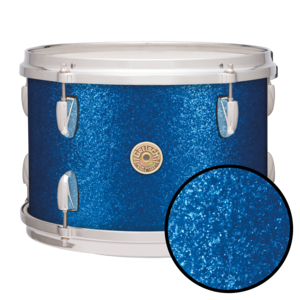

Blue Sparkle
Blue Sparkle

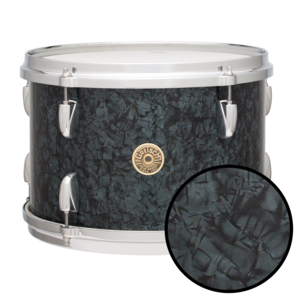

Deep Black Marine Pearl
Deep Black Marine Pearl

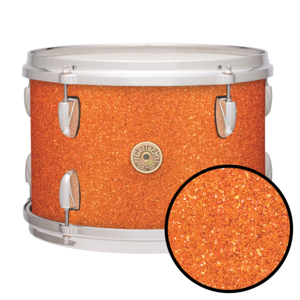

Gold Glass
Gold Glass
Gold Sparkle
Gold Sparkle

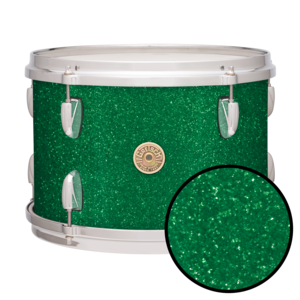

Green Glass
Green Glass

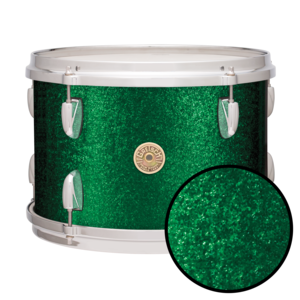

Green Sparkle
Green Sparkle

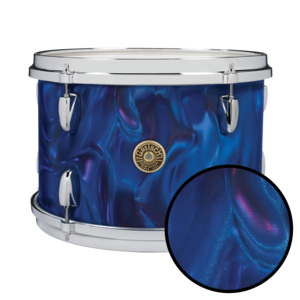

Peacock Satin Flame
Peacock Satin Flame

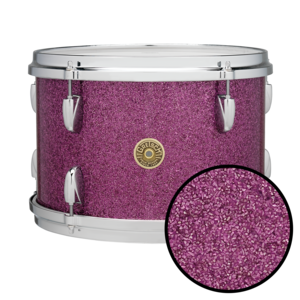

Purple Glass
Purple Glass

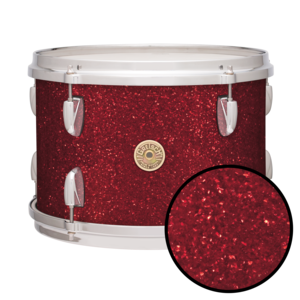

Red Glass
Red Glass

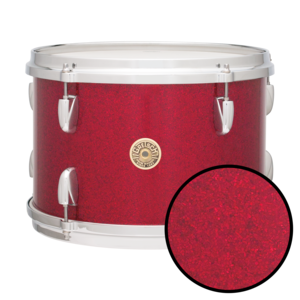

Red Sparkle
Red Sparkle

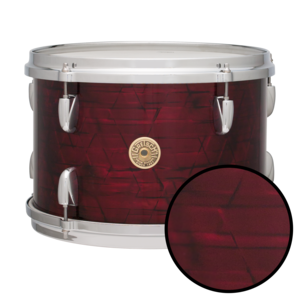

Ruby Red Pearl
Ruby Red Pearl

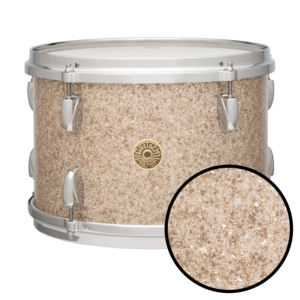

Silver Glass
Silver Glass

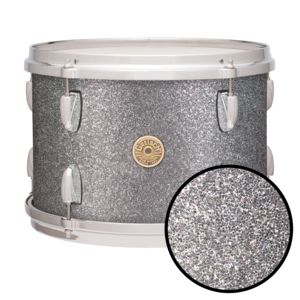

Silver Sparkle
Silver Sparkle

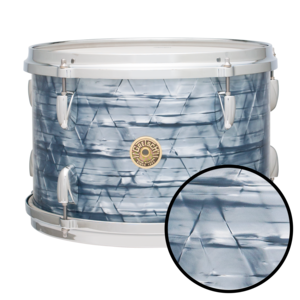

Sky Blue Pearl
Sky Blue Pearl

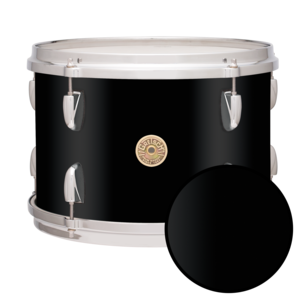

Solid Black
Solid Black

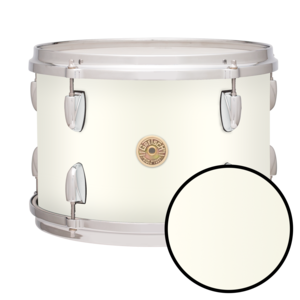

Solid White
Solid White

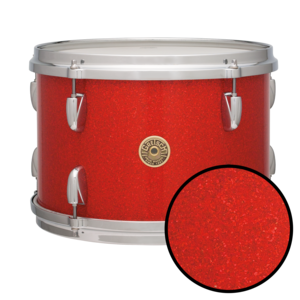

Tangerine Glass
Tangerine Glass

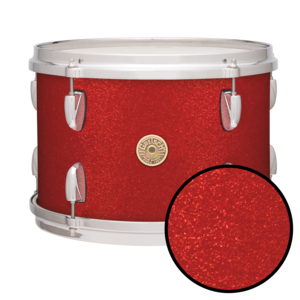

Tangerine Sparkle
Tangerine Sparkle

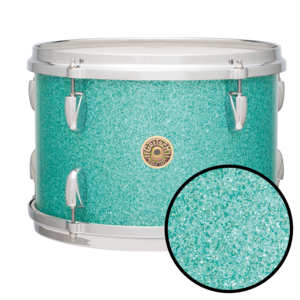

Turquoise Glass
Turquoise Glass

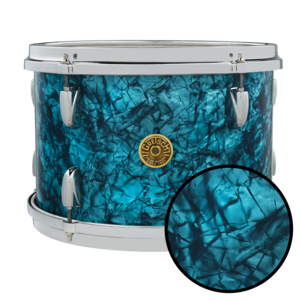

Turquoise Pearl
Turquoise Pearl

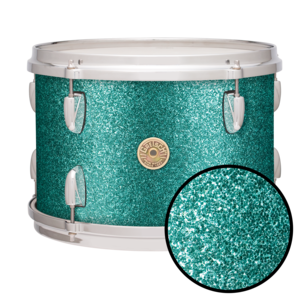

Turquoise Sparkle
Turquoise Sparkle

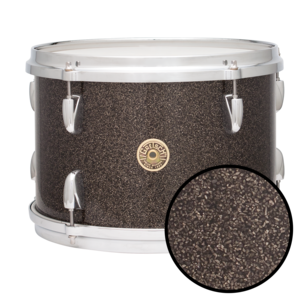

Twilight Glass
Twilight Glass

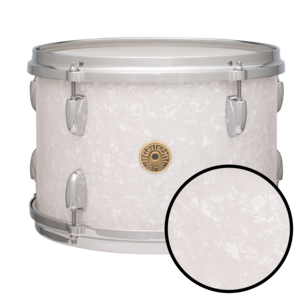

Vintage Marine Pearl
Vintage Marine Pearl

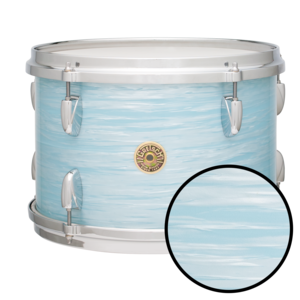

Vintage Oyster White
Vintage Oyster White

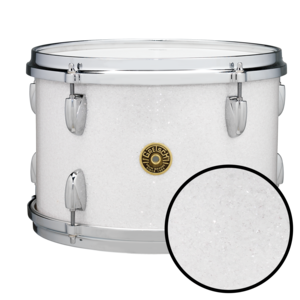

White Glass
White Glass

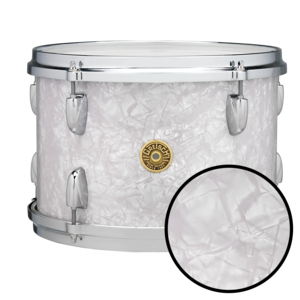

White Marine Pearl
White Marine Pearl
Nitron bass drums are built with satin black hoops and matching inlays. Any other color hoops need to be specifically requested.

satin

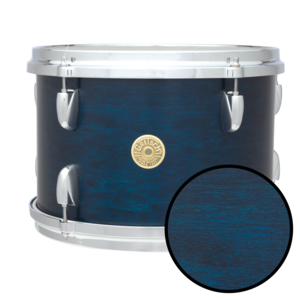

Satin Azure Blue
Satin Azure Blue

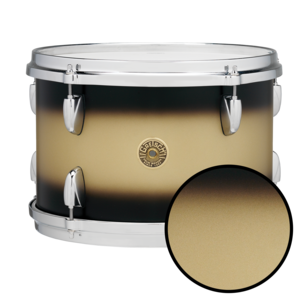

Satin Black Gold Duco
Satin Black Gold Duco

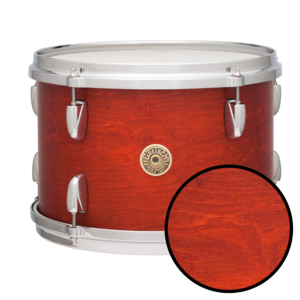

Satin Burnt Orange
Satin Burnt Orange

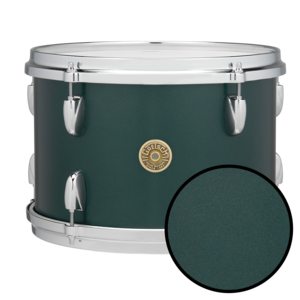

Satin Cadillac Green
Satin Cadillac Green

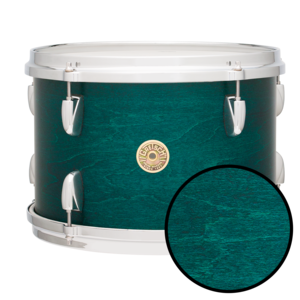

Satin Caribbean Blue
Satin Caribbean Blue

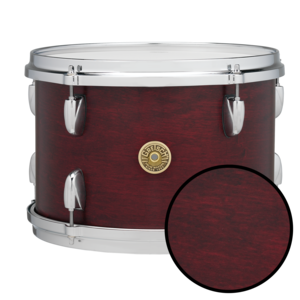

Satin Cherry Red
Satin Cherry Red

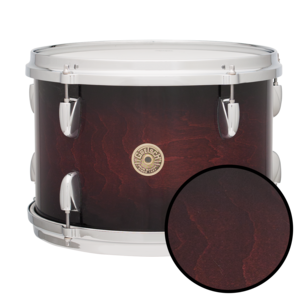

Satin Chestnut Duco
Satin Chestnut Duco
Satin Classic Maple
Satin Classic Maple

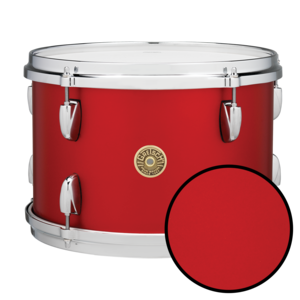

Satin Dakota Red
Satin Dakota Red

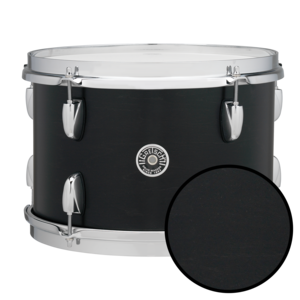

Satin Dark Ebony
Satin Dark Ebony

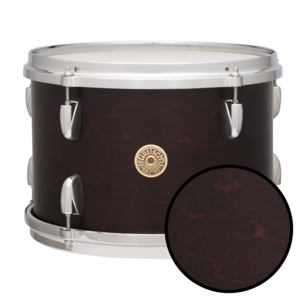

Satin Dark Walnut
Satin Dark Walnut

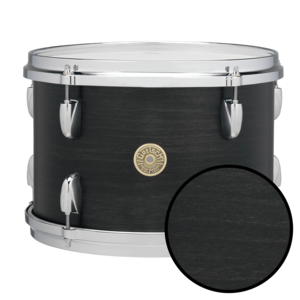

Satin Ebony
Satin Ebony

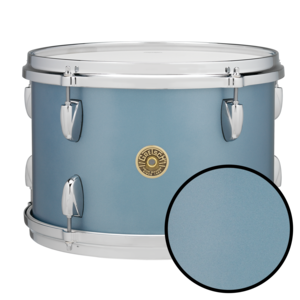

Satin Ice Blue Metallic
Satin Ice Blue Metallic

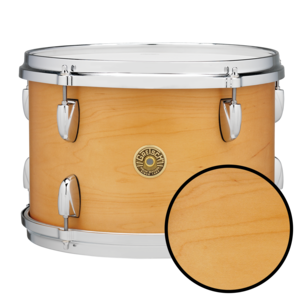

Satin Natural
Satin Natural
Satin Purple
Satin Purple

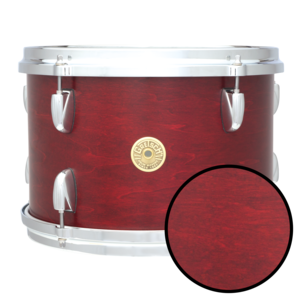

Satin Rosewood
Satin Rosewood

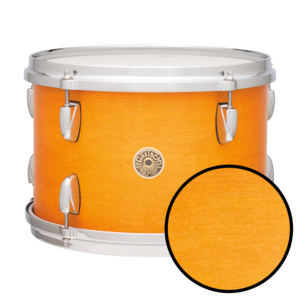

Satin Sun Amber
Satin Sun Amber

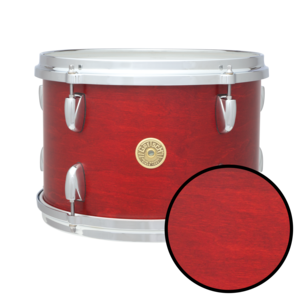

Satin Tabasco
Satin Tabasco

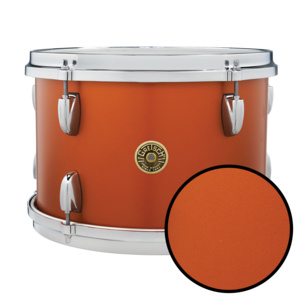

Satin Tangerine Metallic
Satin Tangerine Metallic

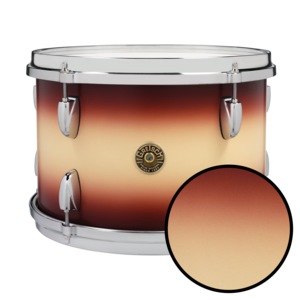

Satin Tobacco - Vintage White Burst
Satin Tobacco - Vintage White Burst

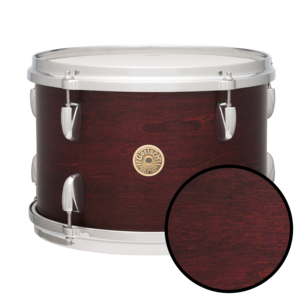

Satin Walnut
Satin Walnut
Due to random grain patterns and color disparities in natural maple, drums may vary slightly in appearance. Add-on drums are most susceptible to these inconsistencies.

gloss

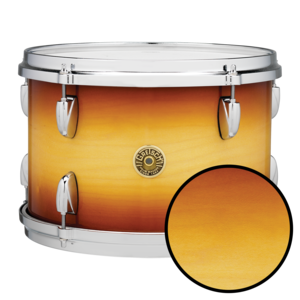

Amber Walnut Burst
Amber Walnut Burst

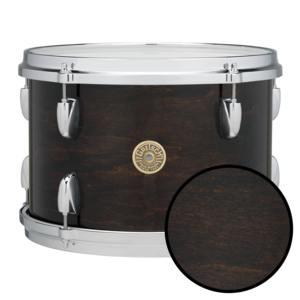

Antique Maple
Antique Maple

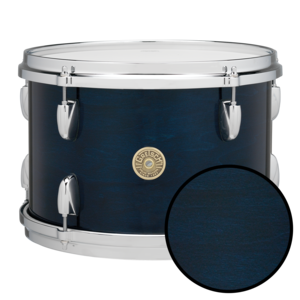

Azure
Azure

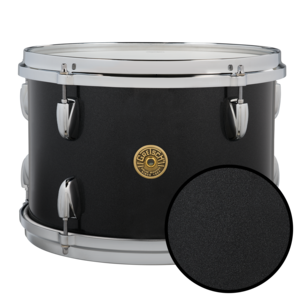

Black Metallic
Black Metallic

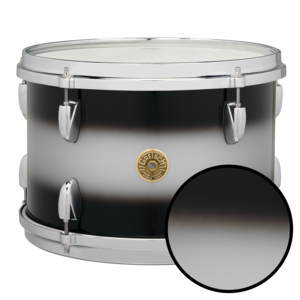

Black Silver Duco
Black Silver Duco

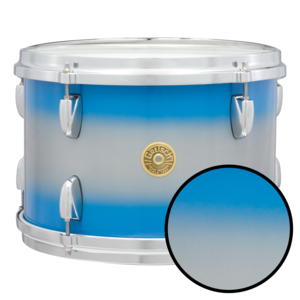

Blue Duco
Blue Duco

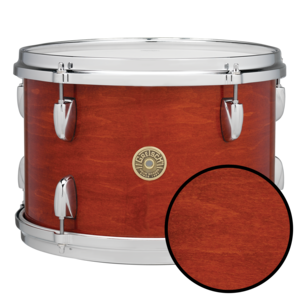

Burnt Orange
Burnt Orange
Cadillac Green
Cadillac Green

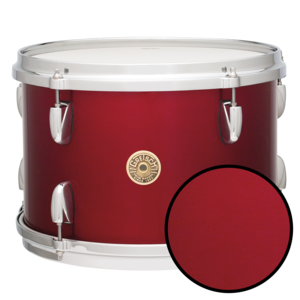

Candy Apple Red
Candy Apple Red

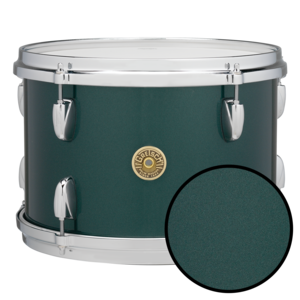

Caribbean Blue
Caribbean Blue

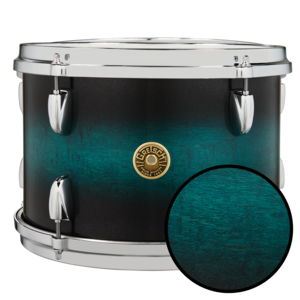

Caribbean Twilight
Caribbean Twilight

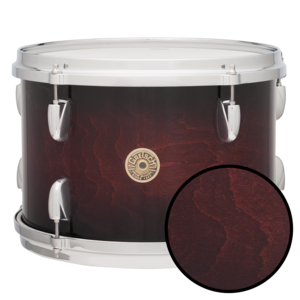

Chestnut Duco
Chestnut Duco

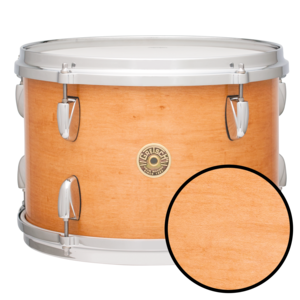

Classic Maple
Classic Maple

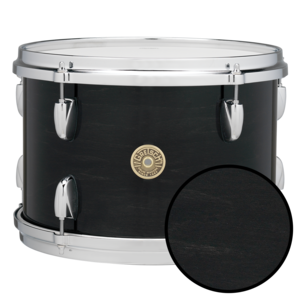

Dark Ebony
Dark Ebony

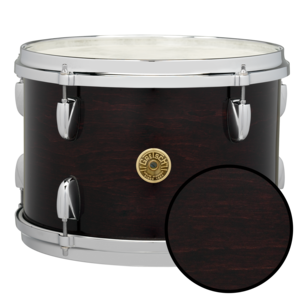

Dark Walnut
Dark Walnut

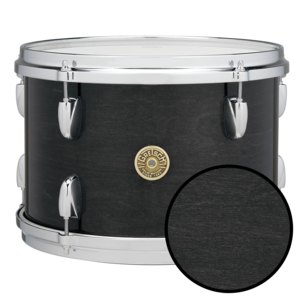

Ebony
Ebony

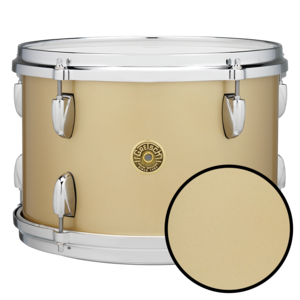

Gold Mist
Gold Mist

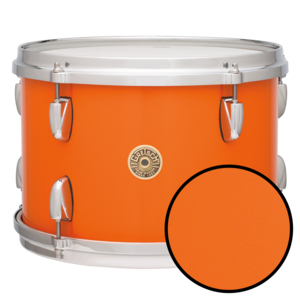

Gretsch Orange
Gretsch Orange

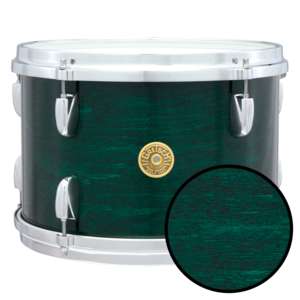

Jade Green
Jade Green

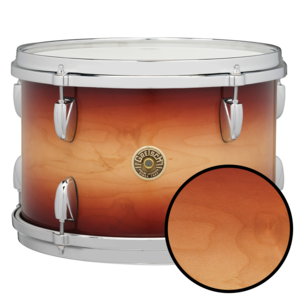

Millennium Maple Walnut Burst
Millennium Maple Walnut Burst

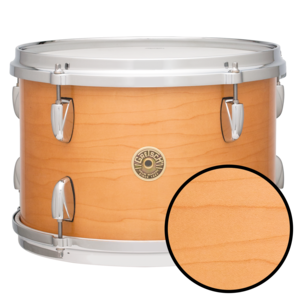

Millennium Maple
Millennium Maple

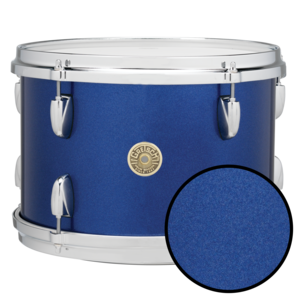

Mystic Blue
Mystic Blue

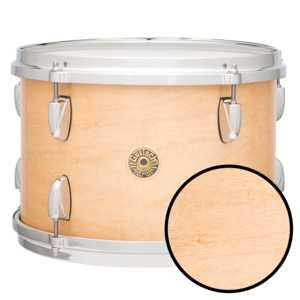

Natural
Natural

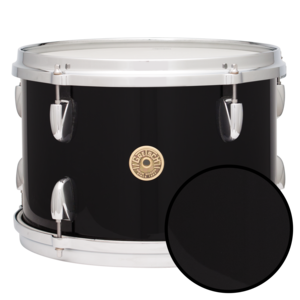

Piano Black
Piano Black

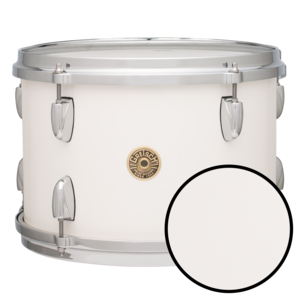

Piano White
Piano White

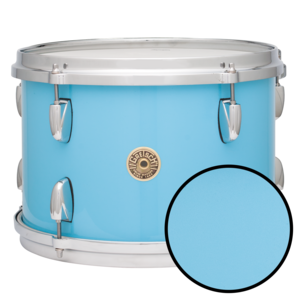

Powder Blue
Powder Blue

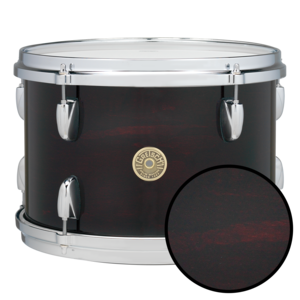

Purple
Purple

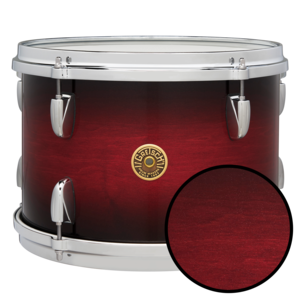

Rosewood Twilight
Rosewood Twilight

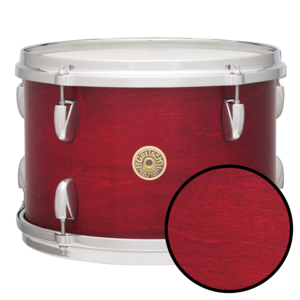

Rosewood
Rosewood

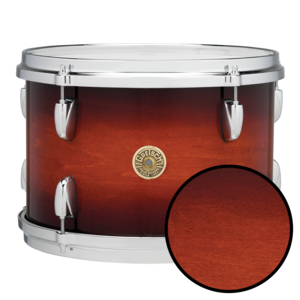

Savannah Sunset
Savannah Sunset

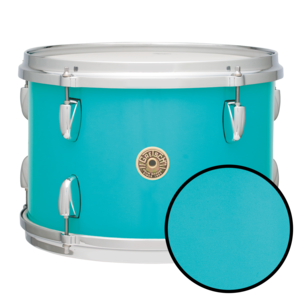

Seafoam Green
Seafoam Green

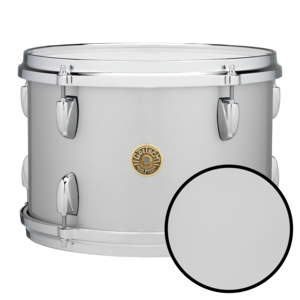

Silver Mist
Silver Mist

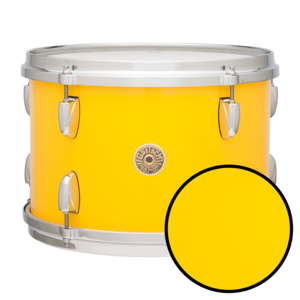

Solid Yellow
Solid Yellow

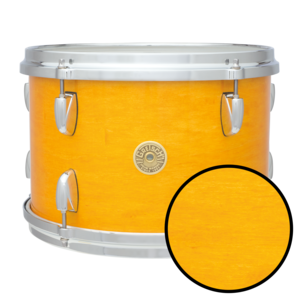

Sun Amber
Sun Amber

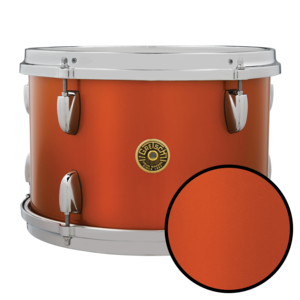

Tangerine Metallic
Tangerine Metallic

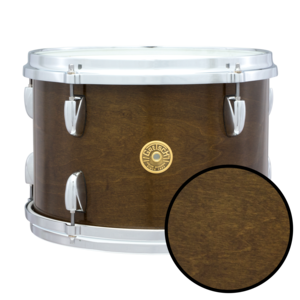

Walnut
Walnut
Due to random grain patterns and color disparities in natural maple, drums may vary slightly in appearance. Add-on drums are most susceptible to these inconsistencies.

BASS DRUM OPTIONS

16" DIAMETER
16" DIAMETER
(Depth x Diameter)

14 x 16, Lugs: 16

18" DIAMETER
18" DIAMETER
(Depth x Diameter)

14 x 18, Lugs: 16

20" DIAMETER
20" DIAMETER
(Depth x Diameter)

14 x 20, Lugs: 16

22" DIAMETER
22" DIAMETER
(Depth x Diameter)

14 x 22, Lugs: 20

24" DIAMETER
24" DIAMETER
(Depth x Diameter)

14 x 24, Lugs: 20

26" DIAMETER
26" DIAMETER
(Depth x Diameter)

14 x 26, Lugs: 20

Hoops
  • Satin Black Hoop with Color Inlay
  • Satin Black Hoop with No Inlay
  • Satin Natural Hoop with Color Inlay
  • Satin Natural Hoop with No Inlay
  • Gloss Black Hoop with Color Inlay
  • Gloss Black Hoop with No Inlay
  • Gloss Natural Hoop with Color Inlay
  • Gloss Natural Hoop with No Inlay
  • Matching Gloss Hoop with Color Inlay
  • Matching Gloss Hoop with No Inlay
Claw Hooks
  • Classic Chrome Die Cast Claw Hooks with Padding
  • Chrome T-Rods
Spurs
  • Chrome Telescoping Spurs
  • Vintage Retractable Spurs
Tom/Cymbal Mounts
  • Undrilled/No Mount
  • Classic Chrome Mounting Plate
  • Gretsch GP Bass Drum Rail Mount w/ ½” L-Arm
  • Vintage Bass Drum Cymbal Holder with 12.7mm Bracket
  • Vintage Bass Drum Cymbal Holder with 10.3mm Bracket
Internal Mufflers
  • Vintage Resonant and Batter Head Mufflers
Resonant Logo Drumheads (Remo®)
  • Remo® White Single-Ply with Broadkaster Logo
  • Remo® Permatone Fiberskyn with Broadkaster Logo
  • Permatone Fiberskyn with Black Offset Gretsch Logo
  • Ebony Single-Ply with White Offset Gretsch Logo
  • White Single-Ply with Black Offset Gretsch Logo
  • Permatone Fiberskyn with Black 12:00 Gretsch Logo
  • Ebony Single-Ply with White 12:00 Gretsch Logo
  • White Single-Ply with Black 12:00 Gretsch Logo
Batter Drumheads (Remo®)
  • Permatone Coated White Powerstroke

FLOOR TOM OPTIONS

13" DIAMETER
13" DIAMETER
(Depth x Diameter)

13 x 13, Lugs: 12

14" DIAMETER
14" DIAMETER
(Depth x Diameter)

12 x 14, Lugs: 16
14 x 14, Lugs: 16

15" DIAMETER
15" DIAMETER
(Depth x Diameter)

15 x 15, Lugs: 16

16" DIAMETER
16" DIAMETER
(Depth x Diameter)

14 x 16, Lugs: 16
16 x 16, Lugs: 16

18" DIAMETER
18" DIAMETER
(Depth x Diameter)

16 x 18, Lugs: 20
18 x 18, Lugs: 20

Brackets/Legs
  • Chrome Hinged Bracket (4825 OR 9025) with 12.7mm Leg
  • Millennium Vintage Diamond Bracket (4820V) with T-Screws and 9.5mm Leg
Mufflers
  • Vintage Dial-Adjusted Felt Batter and Resonant Muffler
Drumheads
  • Remo® Permatone Coated White, Single-Ply Batter Head
  • Remo® Permatone Coated White, Single-Ply Resonant Head
  • Remo® Permatone Clear, Single-Ply Resonant Head
Hoops
  • Gretsch 302 Double Flanged Hoops
  • Gretsch 301 Single Flanged Hoops (Custom Build Option)

MOUNTED TOM OPTIONS

10" DIAMETER
10" DIAMETER
(Depth x Diameter)

7 x 10, Lugs: 10
8 x 10, Lugs: 10

12" DIAMETER
12" DIAMETER
(Depth x Diameter)

8 x 12, Lugs: 10

13" DIAMETER
13" DIAMETER
(Depth x Diameter)

9 x 13, Lugs: 12

14" DIAMETER
14" DIAMETER
(Depth x Diameter)

10 x 14, Lugs: 16

Brackets
  • Hinged Direct-To-Shell Bracket (4825)
  • Hinged Direct-To-Shell Bracket (9025)
  • Non-Hinged Direct-To-Shell Bracket (4820V)
  • Gretsch Tom Suspension (GTS) Mount, Hinged Chrome Bracket (9025)
Tom Holders
  • Bass Drum Mounted Chrome Single Tom Holder
  • Bass Drum Mounted Chrome Double Tom Holder
Mufflers
  • Vintage Dial-Adjusted Felt Batter and Resonant Muffler
Drumheads
  • Remo® Permatone Coated White, Single-Ply Batter Head
  • Remo® Permatone Coated White, Single-Ply Resonant Head
  • Remo® Permatone Clear, Single-Ply Resonant Head
Hoops
  • Gretsch 302 Double Flanged Hoops
  • Gretsch 301 Single Flanged Hoops (Custom Build Option)

SNARE DRUM OPTIONS

13" DIAMETER
13" DIAMETER
(Depth x Diameter)

Custom sizes available upon request

14" DIAMETER
14" DIAMETER
(Depth x Diameter)

5 x 14, Lugs: 8
51/2 x 14, Lugs: 8
51/2 x 14, Lugs: 10
61/2 x 14, Lugs: 8
61/2 x 14, Lugs: 10
61/2 x 14, Lugs: 16
61/2 x 14, Lugs: 20
8 x 14, Lugs: 20
Custom sizes available upon request

Throw-Off/Butt Plates
  • Gretsch Chrome Lightning Throw-Off and Butt Plate
  • Gretsch Chrome Micro-Sensitive Throw-Off and Butt Plate
Snare Wires
  • 20-Strand
  • 42-Strand
Mufflers
  • Vintage Dial-Adjusted Felt Batter and Resonant Muffler
Drum Key Holder
  • Vintage Chrome Snap-In Drum Key Holder
Drumheads
  • Remo® Permatone Coated White, Single-Ply Batter Head
  • Remo® Permatone Coated White, Single-Ply Resonant Head
  • Remo® Permatone Clear, Single-Ply Resonant Head
Hoops
  • Gretsch 302 Double Flanged Hoops
  • Gretsch 301 Single Flanged Hoops (Custom Build Option, Available in 14" only)

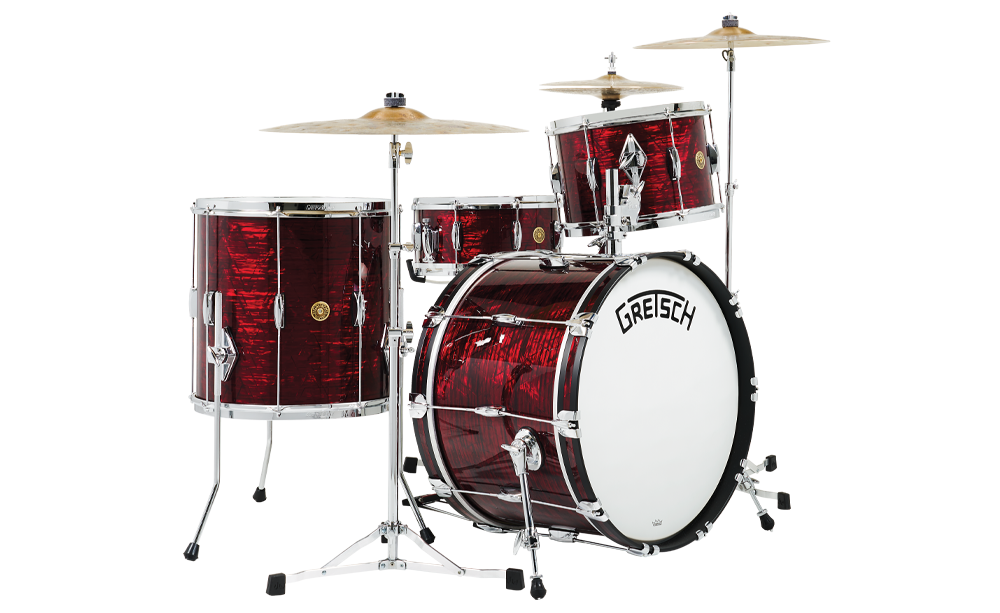

HERITAGE BUILT

Heritage Built authentically recaptures the classic look and vibe from the revered Gretsch days of the Big Band and Jazz era. The classic G5472 double-ended lug, fitted with our extra-long tension rods, enriches the look of any Nitron, Satin or Gloss finish on your custom Gretsch drum kit.
