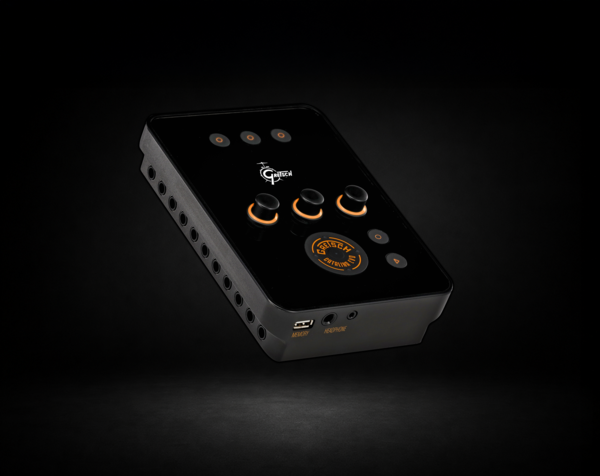

Catalina Evo Module
The Gretsch Catalina EVO Drum Module combines advanced drum technology, extensive connectivity, and authentic Gretsch sounds to deliver a dynamic and expressive drumming experience.
AUTHENTIC GRETSCH SOUNDS - CAPTURED IN EVERY DETAIL.
Thousands of carefully recorded samples capture the distinctive character of Gretsch drums. Multi-layer dynamics, round-robin playback, and dedicated room microphone recordings deliver exceptional realism, depth, and responsiveness.
MULTI VELOCITY LAYERS
Hundreds of dynamic recordings capture every nuance - from the softest ghost note to the hardest hit.
ROUND ROBIN SAMPLES
Multiple alternating samples eliminate the machine-gun effect for a fluid, natural response.
DEDICATED ROOM MICS
Blend close and ambient microphones to bring realistic depth, space and studio ambience.
AUTHENTIC GRETSCH KITS
Carefully recorded from premium Gretsch acoustic drum kits to capture their authentic sound and character.
AUDIO PREVIEWS
The Catalina EVO Drum Module features authentic Gretsch drum sounds.
CONNECTIVITY
The Catalina EVO Drum Module offers versatile connectivity for modern drumming setups.
Multiple inputs and outputs allow easy integration with additional pads, audio systems, recording gear, and computers, making the module suitable for practice, studio use, and live performance.
STUDIO READY
USB audio interface for seamless recording and software integration.
FLEXIBLE ROUTING
Freely assign drums and cymbals to your desired inputs and outputs.
MIX INPUT
Connect an external audio source directly to your drum module.
ADD-ON PADS
Add more pads with our freely assignable AUX inputs (up to 11 in total).
QUICK RECORD
Record your playing directly to your USB drive.
GRETSCH E-DRUM REMOTE APP
The Gretsch E-Drum Remote App makes it easy to edit kits, customize sounds, and adjust module settings directly from your connected device.
NEED MORE INFORMATION?
Download the complete User Manual or get in touch with our support team.

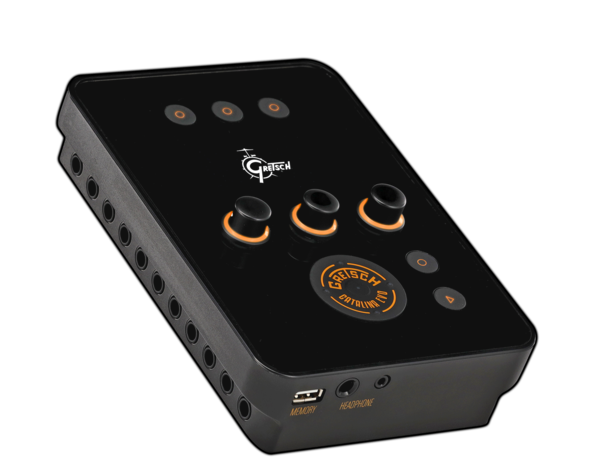

FULL SPECS
178 (50 factory presets + 128 user presets)
> 500
Pad compressor & 3-band full parametric EQ per pad Output compressor & 4-band full parametric EQ for headphones and master output
Ambient Reverb: Sample-based per Instrument Room Reverb: 12 algorithms Instrument Reverb: 12 algorithms Multi Effects: 9 algorithms
128 Import Slots (WAV-Audio, max. length 70 minutes mono, 35 minutes stereo)
Real-Time WAV Recorder (to USB)
External USB storage
Sampling Rate (Original): 48 kHz
Sampling Rate (with Converter): 96 kHz, 44.1 kHz
Recording (USB Out): 8 channels
Playback (USB In): 4 channels (Track, Click)
2,7" OLED Display black/white with 128*64px resolution
Bluetooth Audio + MIDI
DC IN / Power Supply 12V 1.0A / Barrel Connector 5.5 x 2.1mm
143mm (W) x 200mm (D) x 61mm (H)
0.69 kg
